PRODUCT AT A GLANCE
– Advanced tachycardia recording by iECG
– Haemodynamic assessment by TVI
– Mobile remote control with ERMES
SPECIFICATIONS

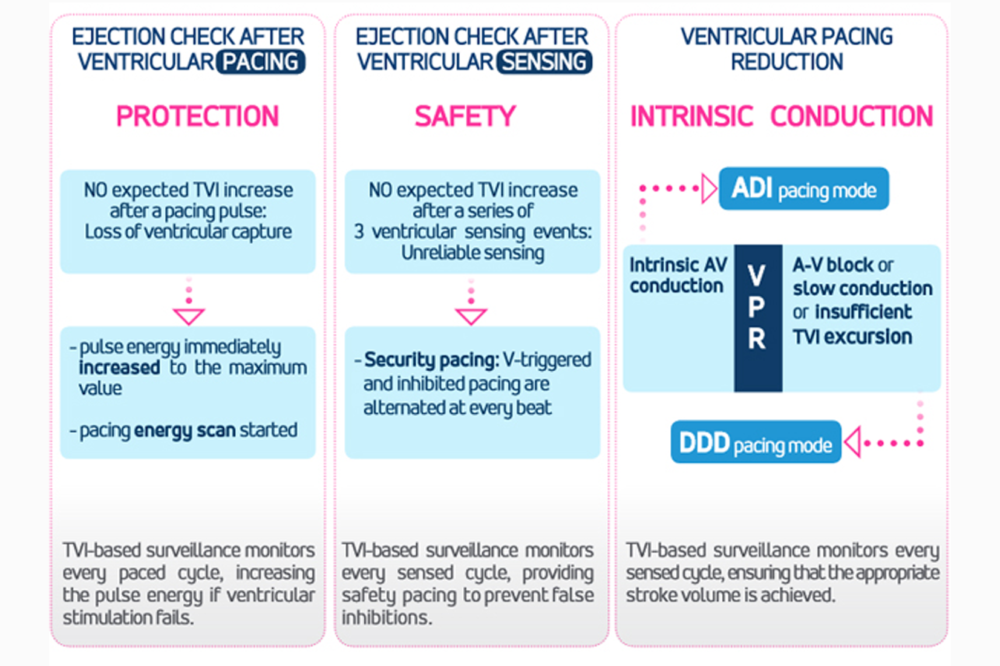

FLUCTUATION IN TRANSVALVULAR IMPEDANCE (TVI) DETECTED AT EVERY BEAT
– Reflects structural and volumetric changes during a cardiac cycle.
– Is correlated with cardiac haemodynamics.
– Confirms the ejection at every beat and assesses the stability of ventricular mechanics in tachycardia.
– Is suitable for long-term monitoring of cardiac performance.
AN EXCLUSIVE ADVANCED APPROACH TO DETECT THE ELECTRIC ACTIVITY OF THE HEART WITH PACING ELECTRODES
The signal provides information comparable to the surface ECG
– Displayed during pacing threshold analysis for capture check.
– Acquired automatically during high-rate episodes to discriminate supraventricular and ventricular arrhythmias.

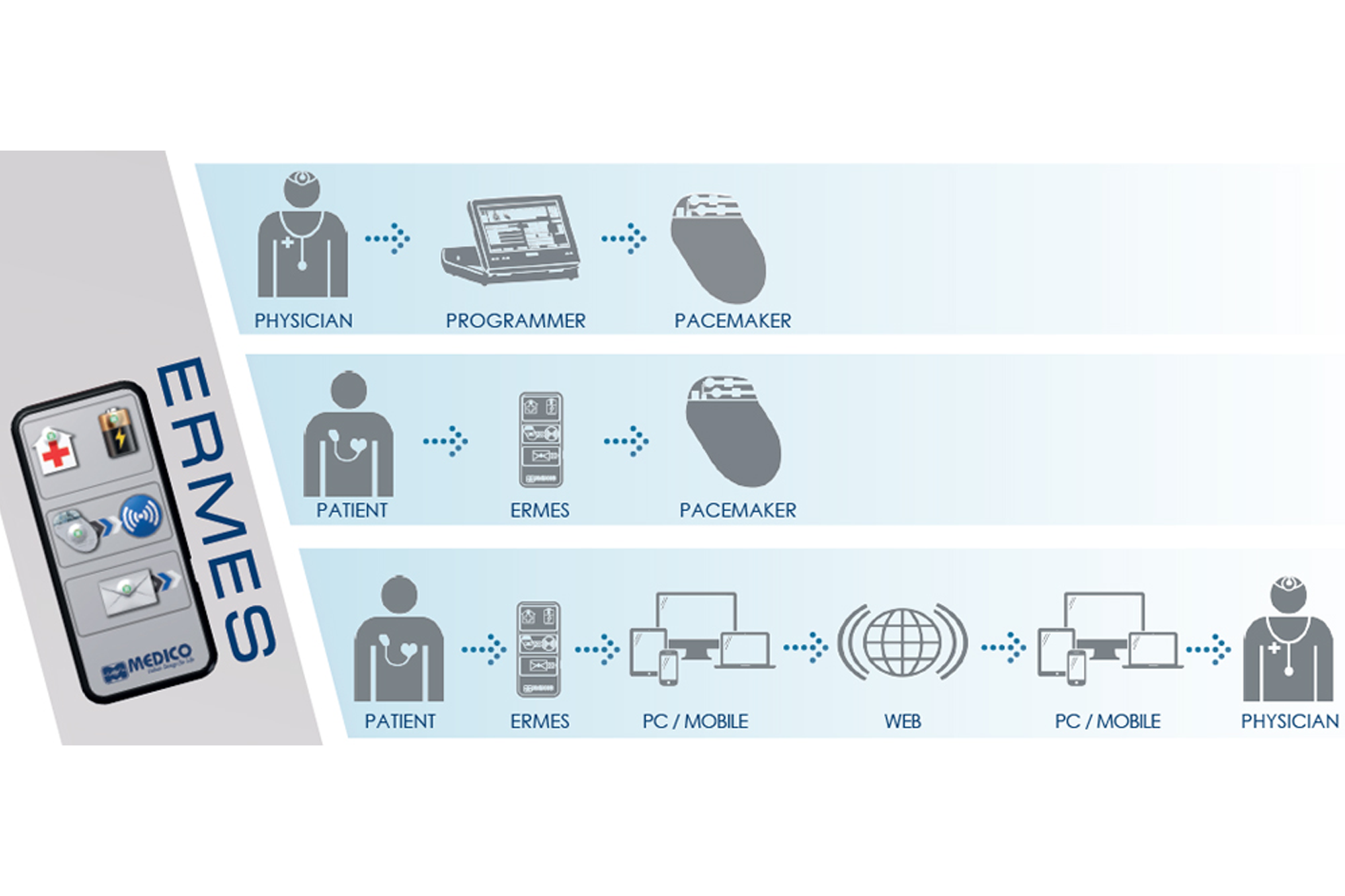

REMOTE CONTROL WITH ERMES COMMUNICATION TOOL
ERMES remote controller keeps patient and physician in touch by :
– Performing fast or complete follow-up checks anywhere and anytime.
– Detecting possible technical or clinical alerts.
– Creating a report, including iECG and TVI tracings recorded in tachycardia or upon request.
– Forwarding the report to the specified address.
EOS MRI is approvedfor MRI application if connected with400J MRIand400 MRI,atrial and ventricular bipolar leads.
[ Compatible with any IS-1 lead for non-MRI use]
